Face Mask Filtration: PM2.5 and PM10 Removal Efficiency

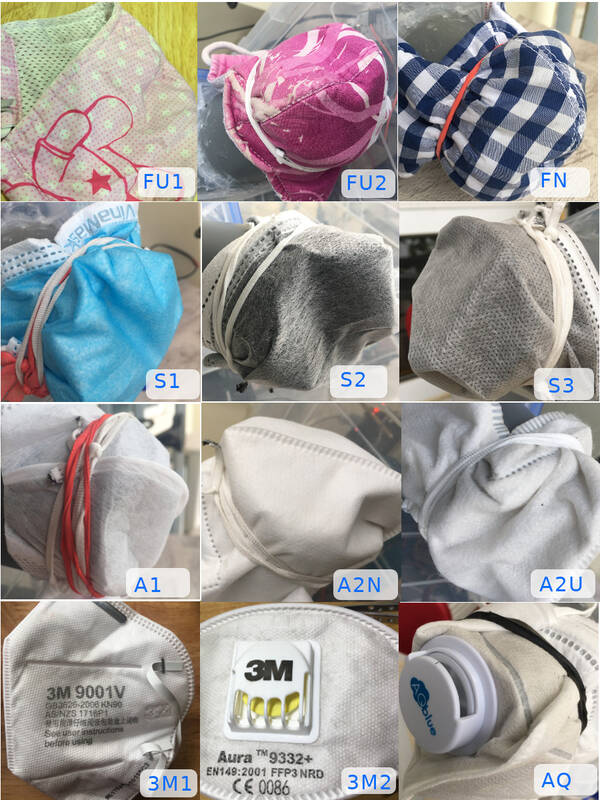

Masks tested in this study

This study evaluated 11 masks over 55 days using an improvised testing apparatus with PMS7003 sensors. It measures material filtration efficiency only; face-seal fit was not evaluated.

Abstract

Four types of face masks were evaluated for particulate matter removal efficiency (RE): fabric, surgical, “air masks” (marketed for pollution), and brand-name particulate respirators. Masks were mounted on a 6 cm PVC pipe, and air was drawn through by a variable-speed fan. PM2.5 and PM10 were measured upstream and downstream using Plantower PMS7003 sensors.

Results by mask type:

Type PM2.5 Removal PM10 Removal
Fabric 8-14% 8-14%
Surgical 29-39% 29-39%
Air mask (marketed) 0-41% (inconsistent) 0-41%
3M respirator (KN90/FFP3) 47-62% 52-62%
AQBlue / Airphin 90-95% 92-94%

A negative correlation between airflow rate and RE (-0.76 to -0.89 for surgical and air masks) confirmed that higher flow reduces filtration. The 3M Aura showed a weaker correlation (-0.51), indicating design improvements that maintain RE at higher airflow.

Background

Hanoi’s 6 million motorbikes (10x the number of passenger cars) expose commuters to high PM2.5 levels. By observation, 60-80% of riders wear masks, with fabric masks dominant. Yet fabric offers minimal protection against fine particles.

Previous work (Shakya et al., 2016) found fabric mask efficiency of 15-57% with diesel exhaust, while N95 respirators showed only marginal improvement over surgical masks for PM2.5 specifically. The WHO reports 4.3 million annual deaths from indoor and 3.7 million from outdoor air pollution, with higher mortality in developing countries.

Analysis of US Embassy monitoring data (2016-2019) shows Hanoi meets Vietnam’s daily PM2.5 standard (“good” level) only 26% of the time. By the WHO’s stricter 25 ug/m3 daily limit (50% lower than Vietnam’s standard), the situation is worse.

Method

Apparatus

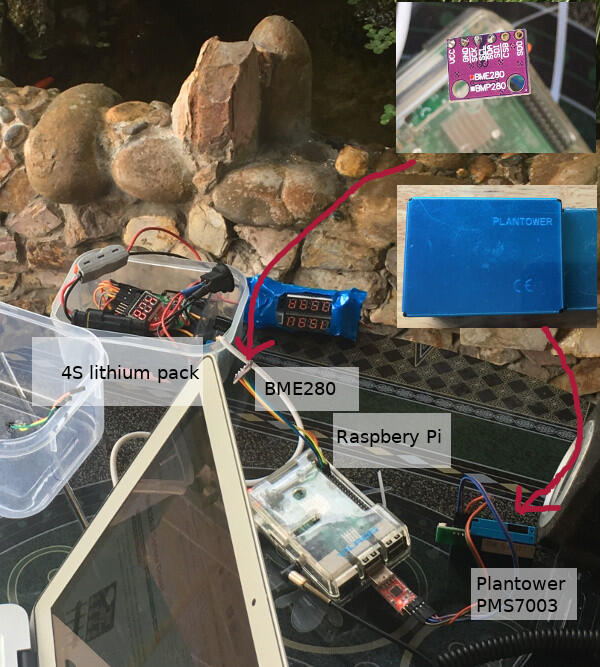

Test setup: PMS7003 sensors with PVC pipe and fan

  • Mask mounted flat on a 6 cm PVC pipe
  • Fan with variable duty cycle (surrogate for airflow rate)
  • Two PMS7003 sensors: one downstream of mask (filtered air), one measuring ambient background
  • Location: 10th floor balcony, light ground-level traffic
  • Each mask tested 2-6 days with 1-minute sampling interval

Data Processing

Over 45 days, ~65,000 data points collected per sensor. Cleaning steps:

  • Removed single anomalous peaks (10 iterative rounds)
  • 3.4% of mask data removed; 1.7% of background data removed
  • Each experiment segmented into 90-120 min crosscheck (both sensors exposed to same air) followed by filtration period

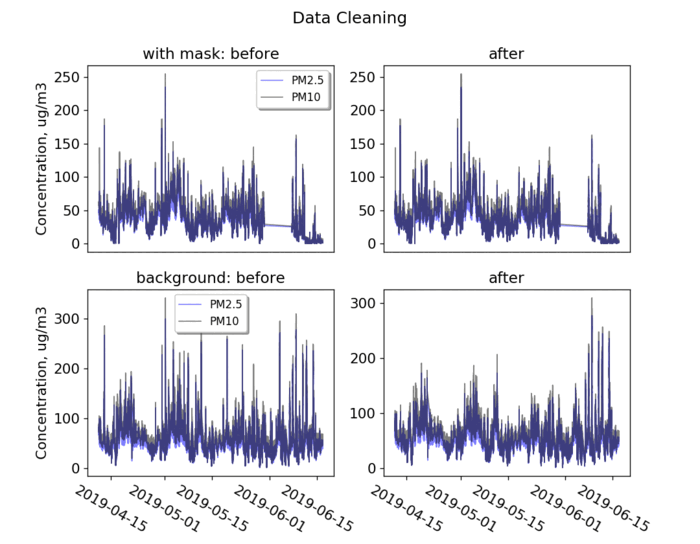

Data cleaning: before and after anomaly removal

Removal Efficiency Calculation

RE = (Background PM - Filtered PM) / Background PM

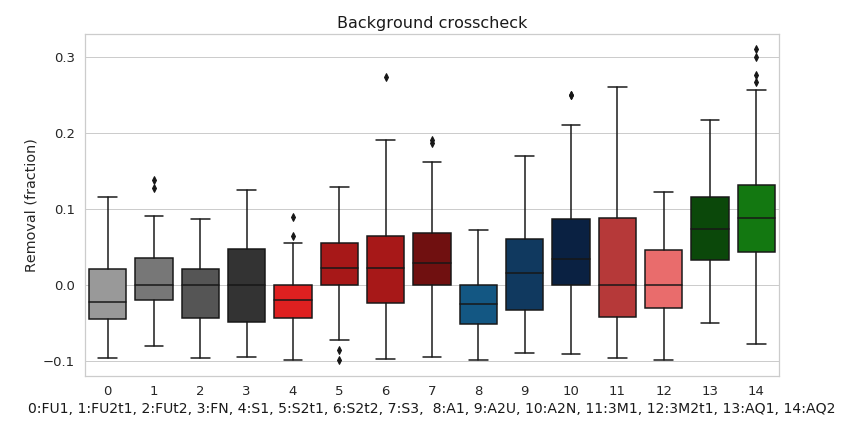

Crosscheck periods confirmed sensor agreement (RE near zero when no mask mounted), validating the apparatus.

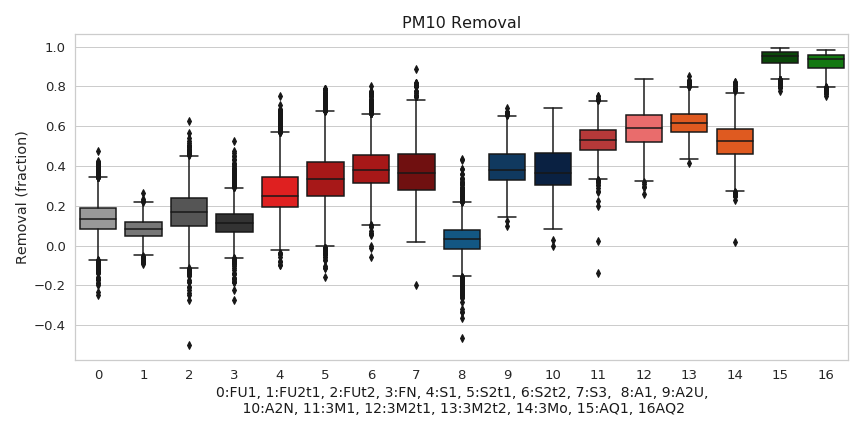

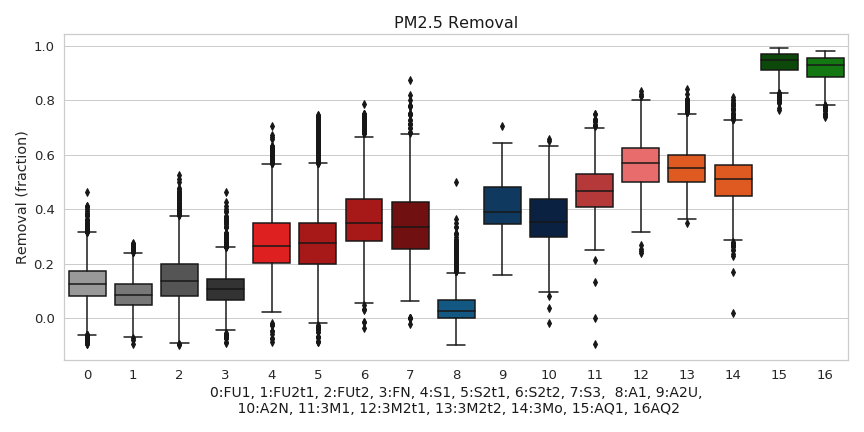

Background vs filtered PM2.5 PM2.5 removal efficiency PM10 removal efficiency
Background vs filtered PM2.5 removal PM10 removal

Results

All Masks

Group Mask ID PM2.5 RE PM10 RE Fan Duty
Fabric FU1 0.13 +/- 0.07 0.14 +/- 0.08 0.58
Fabric FU2 (#1) 0.09 +/- 0.06 0.08 +/- 0.05 0.63
Fabric FU2 (#2) 0.15 +/- 0.09 0.12 +/- 0.01 0.51
Fabric FN 0.11 +/- 0.06 0.12 +/- 0.07 0.53
Surgical S1 0.29 +/- 0.12 0.29 +/- 0.13 0.58
Surgical S2 (#1) 0.29 +/- 0.13 0.34 +/- 0.14 0.51
Surgical S2 (#2) 0.33 +/- 0.06 0.33 +/- 0.08 0.55
Surgical S3 0.37 +/- 0.13 0.39 +/- 0.10 0.62
Air mask A1 0.03 +/- 0.06 0.03 +/- 0.08 0.53
Air mask A2N 0.41 +/- 0.09 0.40 +/- 0.10 0.58
Air mask A2U 0.37 +/- 0.10 0.39 +/- 0.11 0.61
3M 3M1 (KN90) 0.47 +/- 0.08 0.52 +/- 0.07 0.56
3M 3M2 Aura (#1) 0.57 +/- 0.09 0.59 +/- 0.09 0.60
3M 3M2 Aura (#2) 0.56 +/- 0.09 0.62 +/- 0.07 0.62
3M 3M (old) 0.51 +/- 0.09 0.52 +/- 0.09 0.56
AQBlue AQ1 0.94 +/- 0.04 0.94 +/- 0.04 0.60
AQBlue AQ2 0.92 +/- 0.05 0.92 +/- 0.04 0.62

Microscopy Observations

USB microscope images of mask construction revealed:

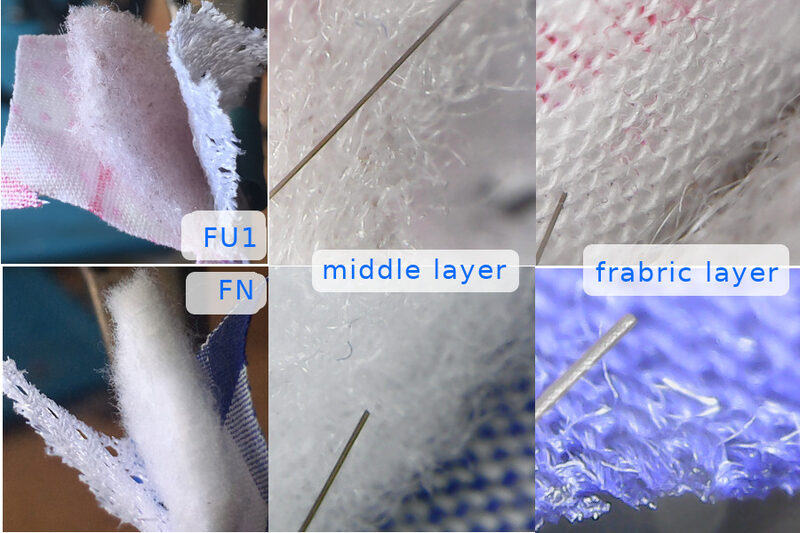

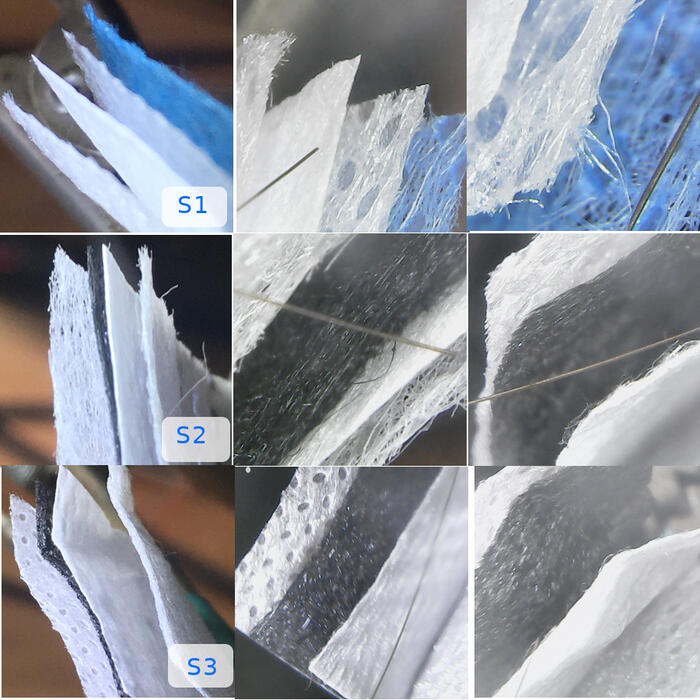

Fabric mask layers Surgical mask layers
Fabric: 3 layers, loose polyester middle Surgical: 4-5 tightly packed layers

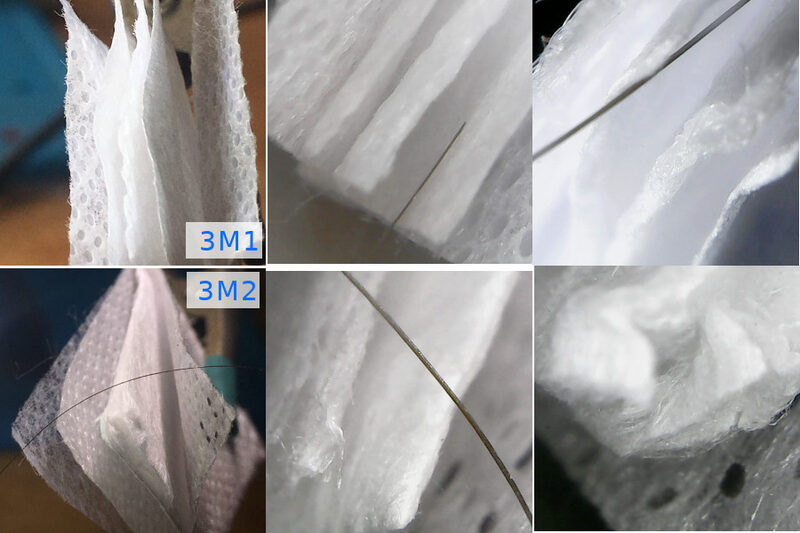

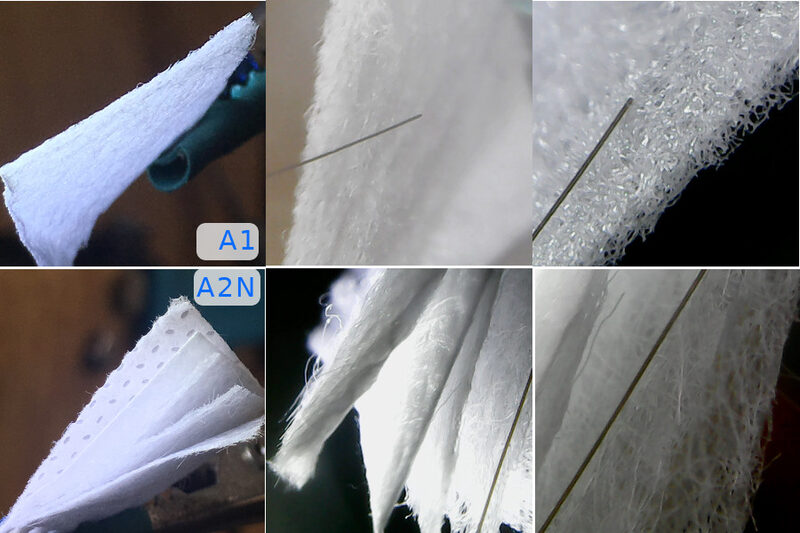

Air mask construction 3M respirator layers
Air mask: varies by model 3M respirator: 5 layers, thick middle

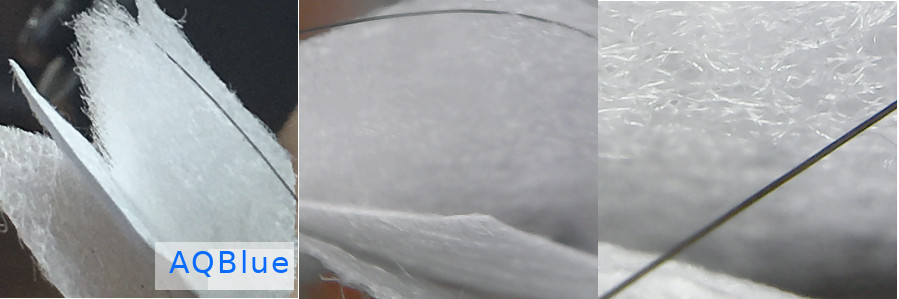

AQBlue filter
AQBlue: highest filtration (90-95%)
  • Fabric: 3 layers (cotton outer, loose polyester middle, support inner). Middle layer loosely packed — visibly porous relative to PM2.5 particle size.
  • Surgical: 4-5 tightly packed layers. One middle layer composed of dense, fine fibers.
  • Air mask A1: Single layer of randomly woven polyester. Pore size comparable to a human hair (~60-70 um) — roughly 30x larger than PM2.5. No effective filtration.
  • Air mask A2: 5 layers with fine fiber middle layer. Effective.
  • 3M respirators: 5 layers. The Aura model features a thick, pillow-like middle layer; the 9001 has two fine-fiber middle layers.

Airflow vs. Removal Efficiency

Mask Type Correlation (fan duty vs. RE) Interpretation
Fabric Near zero Too porous for meaningful filtration at any flow
Surgical -0.76 to -0.89 Strong negative: higher flow degrades RE significantly
Air mask -0.76 to -0.89 Same pattern as surgical
3M Aura -0.51 Moderate negative: design allows higher airflow with less RE loss

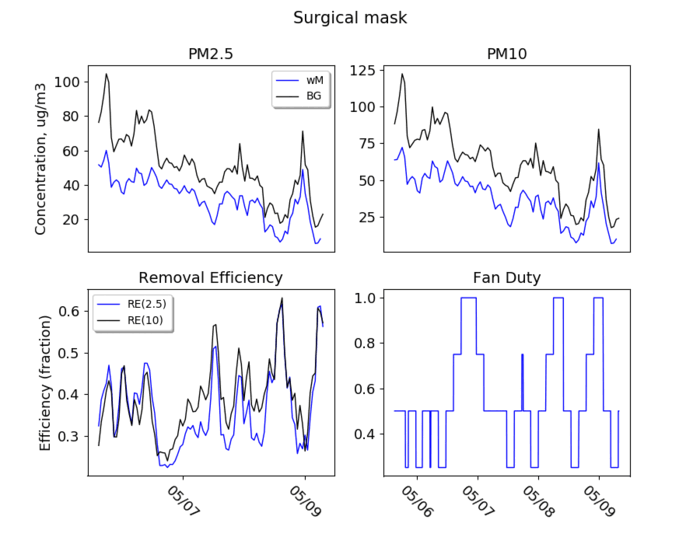

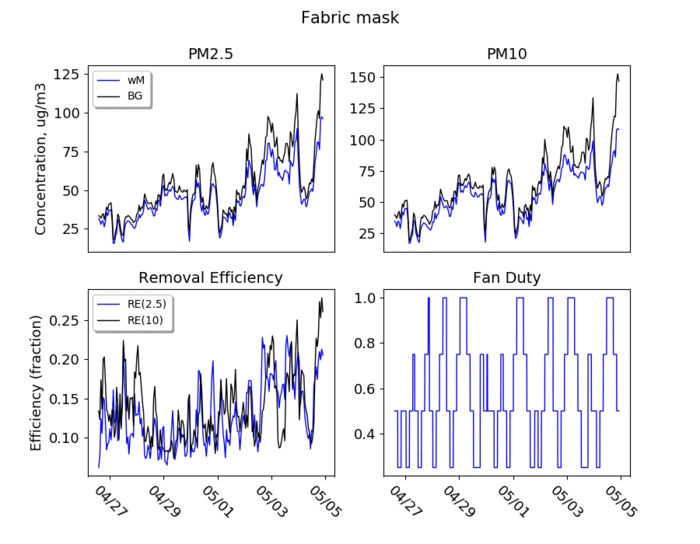

Fan vs RE: Fabric Fan vs RE: Surgical
Fabric: no correlation (already porous) Surgical: strong negative correlation

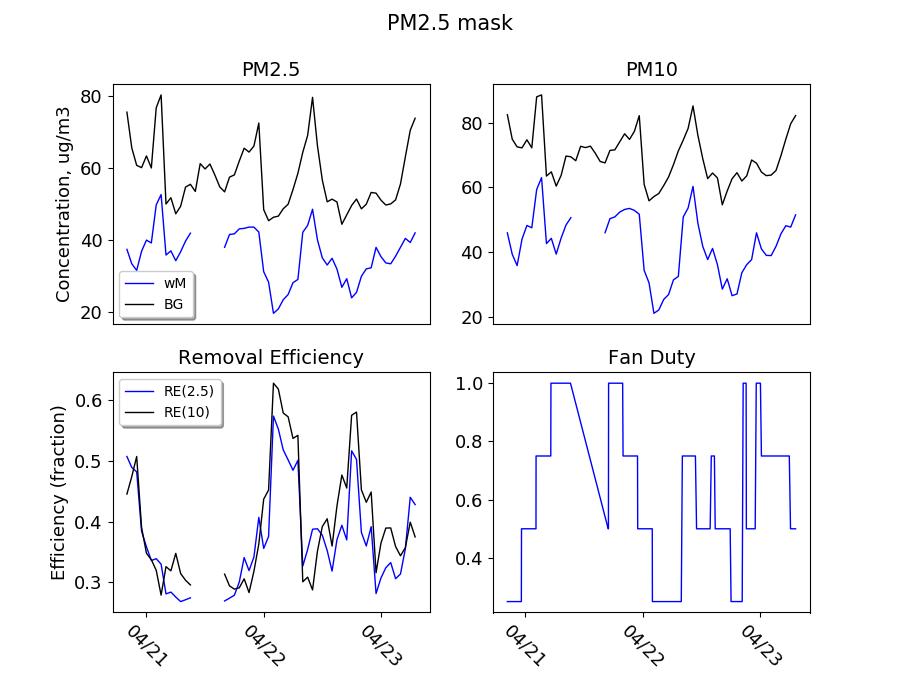

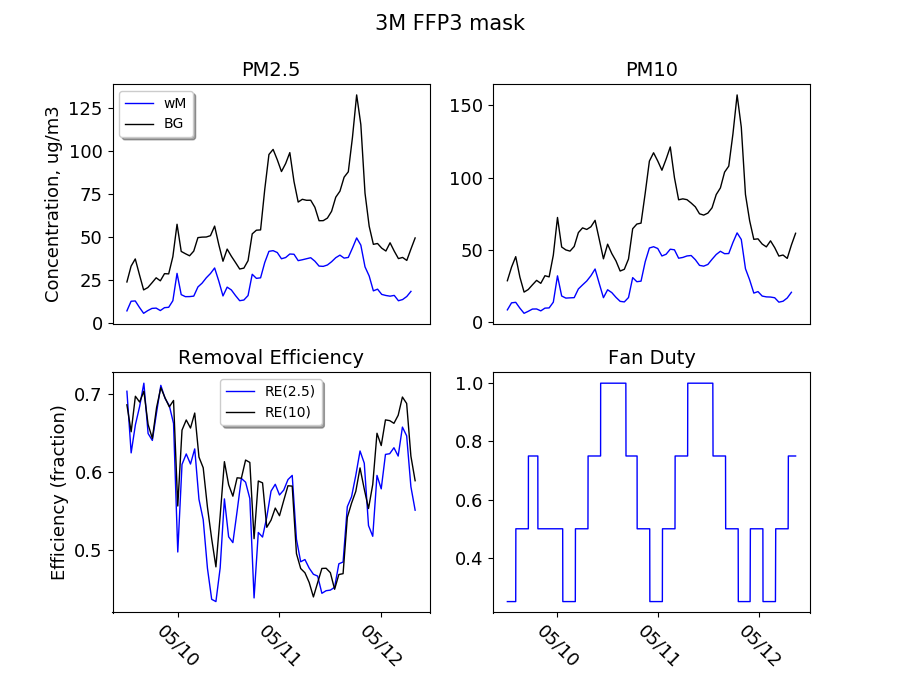

Fan vs RE: 3M Fan vs PM2.5 RE all masks
3M Aura: moderate correlation All masks: PM2.5 removal vs fan duty

Limitations

  1. No face-seal test. Masks were mounted flat on a pipe. Real-world leakage around the nose and cheeks reduces effective RE. Results represent maximum material filtration efficiency only.

  2. Form factor varies by type. Surgical masks are not designed to seal around the face. Fabric masks conform better but use inadequate materials. Even a well-designed mask depends on individual facial geometry.

  3. Not comparable to manufacturer ratings. Standard certification (NIOSH 42 CFR 84, EN 149, GB 2626) uses controlled aerosols and calibrated equipment. This study used ambient air and low-cost sensors, simulating on-road conditions rather than laboratory conditions.

  4. Ambient testing location. A 10th-floor balcony with light ground traffic is an approximation of street-level exposure.

Conclusions

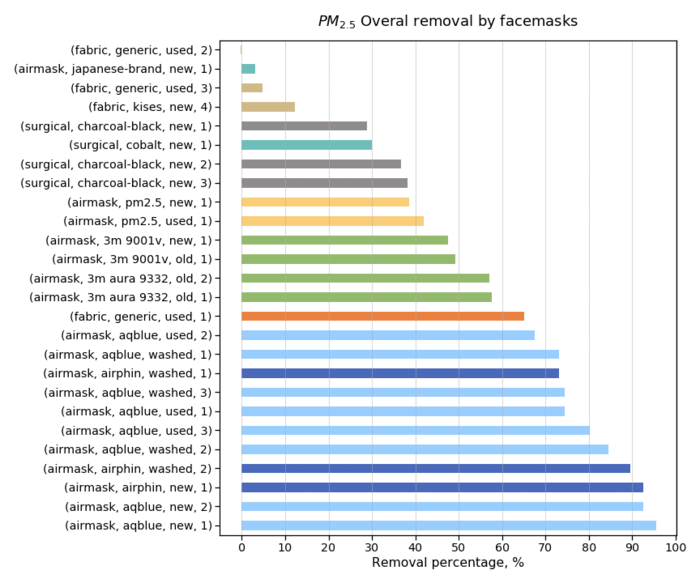

Overview: PM2.5 removal efficiency across all masks

  • Fabric masks (dominant on Hanoi streets) provide negligible PM2.5 protection (8-14% RE)
  • Surgical masks offer moderate filtration (29-39%) but poor face seal makes real-world benefit uncertain
  • “Air masks” marketed for pollution are inconsistent — one model showed 0-3% RE, another 37-41%
  • 3M particulate respirators (KN90/FFP3) achieved 47-62% material RE, with design features that resist degradation at higher airflow
  • AQBlue respirators showed the highest RE at 90-95%
  • Higher airflow consistently reduces RE, except for fabric masks (already too porous to filter)
  • Choosing a certified brand-name mask and wearing it properly is the single most practical recommendation

Acknowledgements

Thanks to Dr. Han Huy-Dung for lending PMS7003 sensors, and to the SPARC lab at Hanoi University of Science and Technology for collaboration on sensor evaluation.

Originally published on b-io.info, 2019. 14 tests on 11 masks over a 55-day period.
